PRO-impact and ONE-impact lines
Industrial blast cabinets
An industrial blast cabinet is a hand blast cabinet: the operator blasts through gloves, the part stays inside and the abrasive returns into circulation through a recovery unit. Phibo supplies eleven sizes in two lines, PRO-impact and ONE-impact.
- Surface treatment specialist since 1988
- Built to the applicable CE standards
- Abrasives and blasting accessories in our own warehouse
- Maintenance, repair and spare parts arranged directly with Phibo
Every size side by side
Which size fits your part
Eleven cabinet sizes, from a blast chamber 80 cm wide to one of 2.5 metres. The part has to pass through the door opening, and that sets the maximum height of what you can load, not the height of the chamber. Send us the dimensions and the weight of your part and we will tell you which size and which version you need.
Every size, sorted on the width of the blast chamber
| Model | Blast chamber W x D x H | Door opening W x H | Weight |
|---|---|---|---|
| PRO 0806/2 | 816 x 596 x 325 to 620 mm | 480 x 360 mm | Not stated |
| PRO 0806 | 800 x 550 x 750 mm | Not stated | 100 kg |
| ECO | 900 x 750 x 780 mm | 790 x 330 mm | 150 kg |
| ONE 0907 | 910 x 700 x 965 mm | 620 x 875 mm | 350 kg |
| ONE 0909 | 925 x 905 x 995 mm | 800 x 875 mm | 460 kg |
| PRO 1208 | 1150 x 750 x 850 mm | Not stated | 150 kg |
| ONE 1310 | 1290 x 1020 x 1150 mm | 940 x 975 mm | 580 kg |
| ONE 1313 | 1290 x 1320 x 1150 mm | 940 x 975 mm | 650 kg |
| PRO 1510 | 1390 x 1000 x 970 mm | Not stated | 200 kg |
| PRO 2010 | 2000 x 1000 x 970 mm | Not stated | 250 kg |
| PRO 2510 | 2500 x 1000 x 950 mm | Not stated | 350 kg |
Swipe the table to the left to see all columns.
Approximate values from the technical data sheets. The Duo versions have the same blast chamber as the ONE 1310 and the ONE 1313. Where the door opening is not in the data sheet, we state it in the quote. Further down you get all the specifications per line: one table for the five PRO sizes together, and a separate table for the PRO 0806/2, for each ONE size and for the ECO cabinet.
The two versions
Suction or pressure blasting, version S or P
Every cabinet comes in two versions. In the suction version, version S for suction, compressed air draws the abrasive into the gun itself: a simple build, and plenty for work that does not run all day. In the pressure version, version P for pressure, the abrasive is pressurised in a blast pot and pushed through the hose to the nozzle. That gives an abrasive stream of 150 to 250 metres per second against 60 to 100, and up to three times the output. If you blast every day, or have to take off a stubborn layer, you choose P. If you clean a part now and then, S will do. Only the ECO cabinet comes in the suction version alone.
Version S
Suction blasting
The abrasive is drawn in a metered flow from the collector and accelerated with compressed air at the gun. The right choice if blasting is not a continuous activity and cleaning speed is not decisive.
- speed of the abrasive stream
- 60 to 100 m/s
- nozzle on the hand blast gun
- Ø 8 mm
Version P
Pressure blasting
The abrasive is pressurised in a blast pot and pushed to the nozzle. A dosing device sets the feed precisely. Recommended for continuous use, where output matters.
- speed of the abrasive stream
- 150 to 250 m/s
- higher productivity
- up to 3 times
How to choose between S and P
| Feature | Suction system (S) | Pressure system (P) |
|---|---|---|
| Speed of the abrasive stream | 60 to 100 m/sec | 150 to 250 m/sec |
| Productivity | the baseline | up to three times higher |
| Recommended for | blasting that is not a continuous activity | continuous use, where output matters |
| Abrasive feed | drawn in a metered flow from the collector | pressurised in a blast pot: 35 l on the PRO line, 20 or 40 l on the ONE line |
| Acceleration | with compressed air, at the gun | by the pressure in the pot, set with a dosing device |
| Blast nozzle | Ø 8 mm on the hand blast gun | diameter to suit the available compressed air flow |
| Switching abrasive | additional abrasive vessels possible | not provided |
Swipe the table to the left to see all columns.
The speeds and the output come from the technical data sheet of the PRO-impact cabinets. Every cabinet on this page comes in both versions, except the ECO cabinet, which is suction only.
References
They rely on Phibo for surface treatment
The cabinets up close

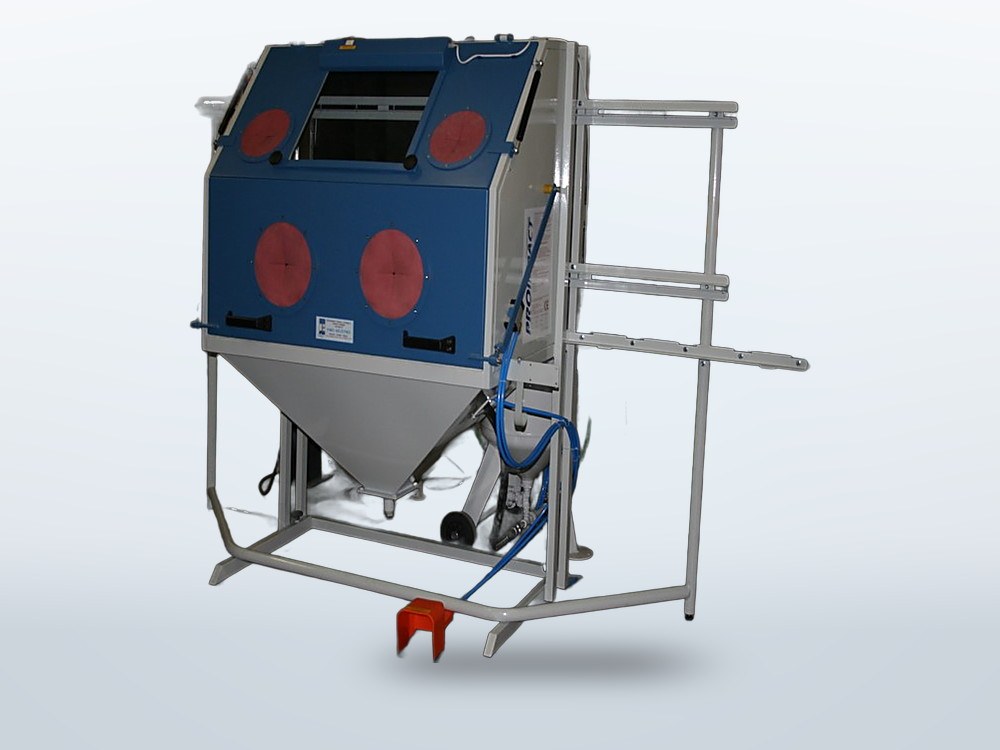

The PRO-impact line: five sizes, one modular design

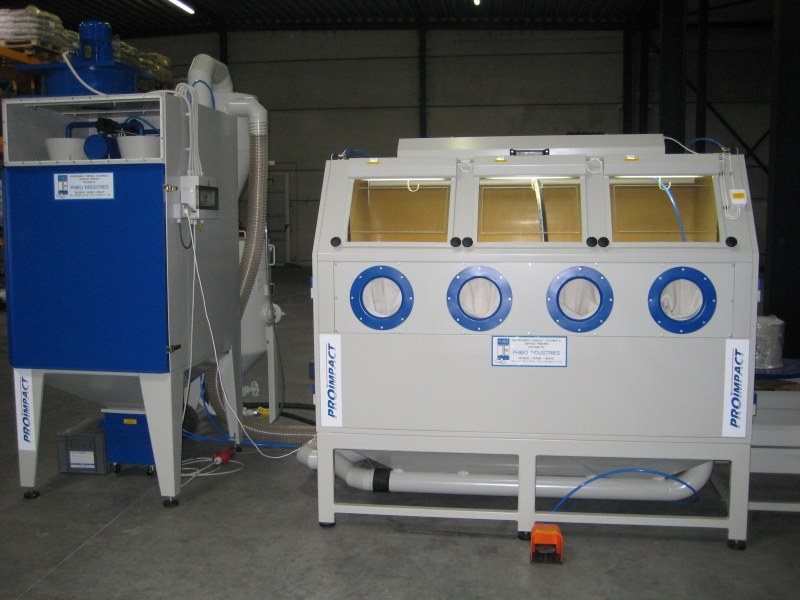

PRO 0806, PRO 1208, PRO 1510, PRO 2010 and PRO 2510. Every size comes in a suction (S) and a pressure (P) version, with or without a recovery and recycling unit for the abrasive. Send us the dimensions of your part and we will tell you which size you need.
Dimensions and weight per cabinet size
| Model | Internal dimensions W x D x H | External dimensions W x D x H | Weight of the empty cabinet |
|---|---|---|---|
| PRO 0806 | 800 x 550 x 750 mm | 850 x 600 x 1540 mm | 100 kg |
| PRO 1208 | 1150 x 750 x 850 mm | 1200 x 800 x 1640 mm | 150 kg |
| PRO 1510 | 1390 x 1000 x 970 mm | 1450 x 1050 x 1805 mm | 200 kg |
| PRO 2010 | 2000 x 1000 x 970 mm | 2050 x 1050 x 1805 mm | 250 kg |
| PRO 2510 | 2500 x 1000 x 950 mm | 2550 x 1050 x 1740 mm | 350 kg |
Swipe the table to the left to see all columns.
Approximate values, from the technical data sheet. The work platform carries 250 kg in every size. Note: PRO 0806 and PRO 0806/2 are two different cabinets. The PRO 0806 is the smallest size in this series, in steel with an epoxy coat. The PRO 0806/2 is a separate cabinet in stainless steel, with an adjustable working height and its own filter unit, described separately below.
What every cabinet carries as standard
| Item | Execution |
|---|---|
| Construction | Steel construction with an epoxy coat, cabinet in RAL 7038 and door in RAL 5010 |

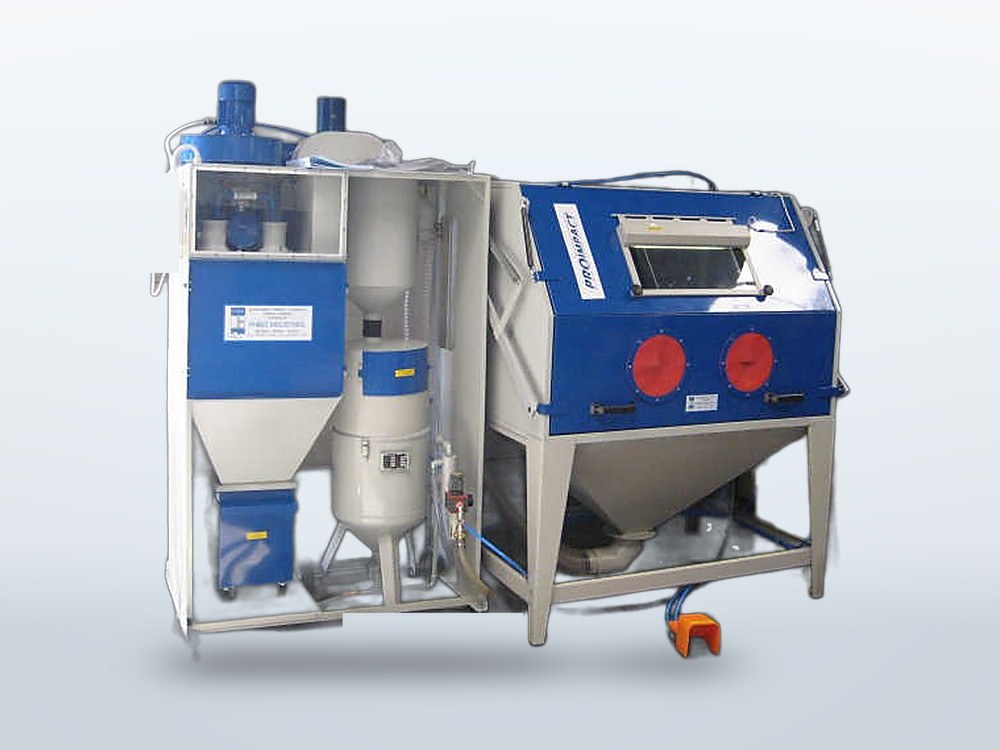

| Layout | Modular: the cabinet and the recycling unit with the filter stand in a compact or a separated layout |
| Door | Lateral double-walled acoustic door on the right, with a safety switch that interrupts blasting as soon as the door opens |
| Work platform | Two-part galvanised grid covering the full cabinet surface, load capacity 250 kg |
| Wear kit | Inner lining of the cabinet walls in anti-abrasive rubber, blast nozzle in boron carbide |
| Gloves | Pair of antistatic blasting gloves in anti-abrasive rubber with a cotton lining |

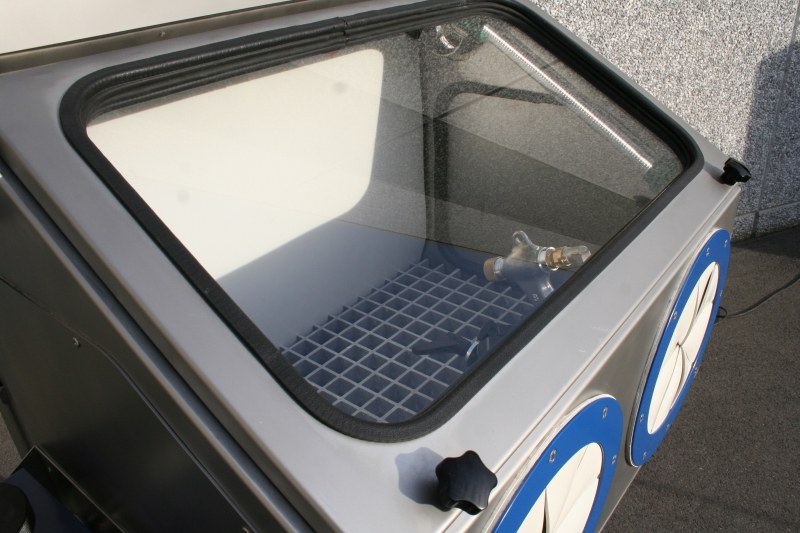

| Viewing window | Safety glass of around 600 x 300 mm, thickness 2 x 3 mm, with a replaceable protective visor |
| Lighting | LED lighting, around 650 lux |
| Pneumatic circuit | Water separator, pressure regulator and gauge, mounted at the front for quick access |
| Blast gun | Suction hand blast gun with a pneumatic foot pedal, nozzle Ø 8 mm |
| Blow-off | Compressed air gun with grip control, to blow off remaining abrasive and dust |
| Filtration | Antistatic filter cartridges, as standard |
| In the pressure version | Blast pot with a standard capacity of 35 l, hose set and blast nozzle, operated with a foot pedal. The nozzle diameter follows the available compressed air flow |
| Filter unit | Phibo F1500 or Phibo F3100, chosen on the extraction rate, with a Ø 120 mm connection and 12 or 64 m² of filter surface |
| Versions | Every size comes in suction (S) and in pressure (P) |
| Conformity | Built to the applicable CE standards |
Swipe the table to the left to see all columns.
A separate cabinet

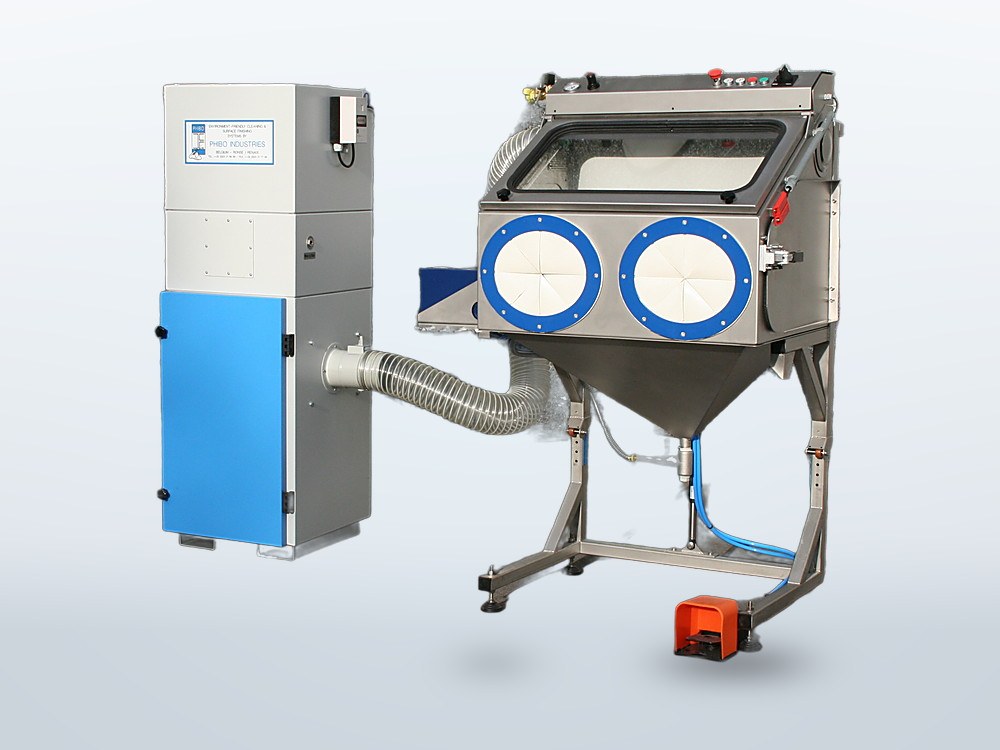

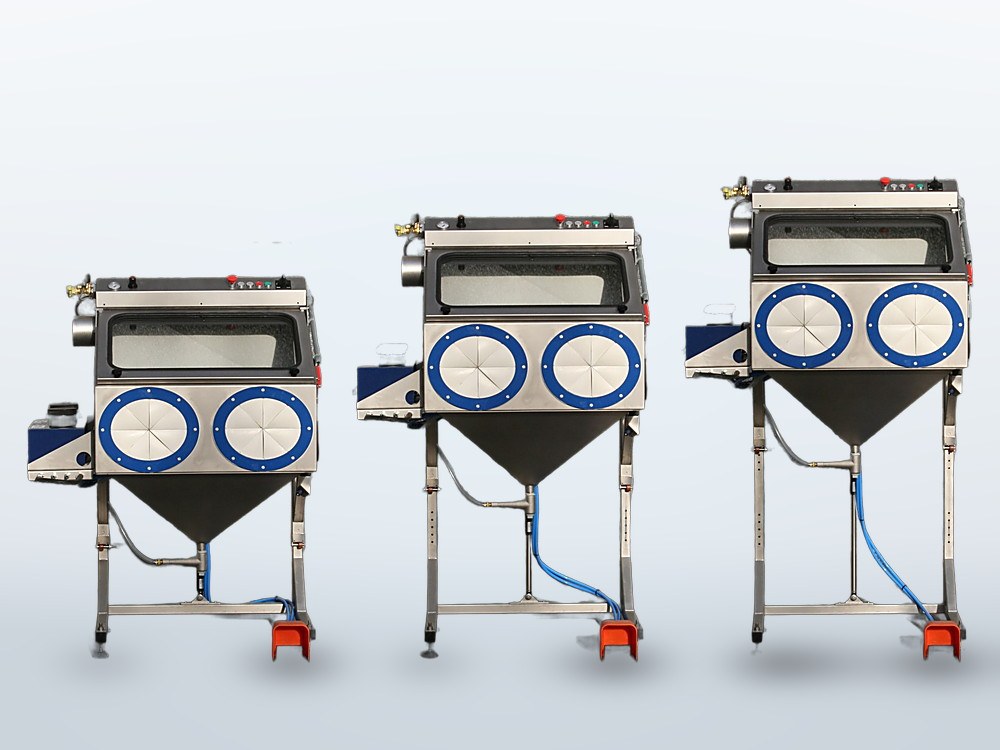

PRO 0806/2, in stainless steel and height adjustable
The smallest installation in the range, for the fine and precise surface treatment of small parts. The blast chamber measures around 816 x 596 mm, with a height of 325 to 620 mm. The cabinet is made of stainless steel and finished with the SublimotionProcess®. The work platform adjusts manually or by actuator between 665 and 950 mm, so the operator works at his own height. It takes up almost no floor space, which makes it suited to small workshops and precision work areas. This cabinet is available in a pressure version as well.
- Blast chamber 816 x 596 x 325 to 620 mm
- Working height of the platform 665 to 950 mm
- Viewing window 700 x 380 mm, with frontal and lateral LED lighting
- Dust emission below 1 mg/m³, in some cases below 0.5 mg/m³
Specifications PRO 0806/2
| Feature | Value |
|---|---|
| Blast chamber W x D x H | Around 816 x 596 x 325 to 620 mm |
| Platform working height | 665 to 950 mm, set manually or with an integrated actuator |
| Door opening W x H | 480 x 360 mm, lateral door on the right with a safety switch. That opening sets the maximum height of what you can load |
| Pressure version | Available; we state the blast pot capacity in the quote |
| Viewing window | Around 700 x 380 mm, safety glass 2 x 3 mm, with a replaceable protective visor |
| Work platform | Two-part grid over the full surface, load capacity 75 kg, with a removable sieve underneath |
| Construction | Stainless steel, finished with the SublimotionProcess® |
| Lighting | Frontal and lateral LED lighting, closed circuit at 24 VDC |
| Blast gun | Nozzle Ø 8 mm, air consumption 900 l/min at 6 bar |
| Inner lining | Wear-resistant rubber sheets, on request in white natural rubber for better visibility |
| Electrical cabinet | Compliant with the Belgian electrical code, with the electrical and pneumatic components for safe operation |
| Cartridge filter Phibo F800 | 500 x 500 x 1840 mm, 800 m³/h, 0.75 kW, 10 m² filter surface, antistatic cartridge |
| Dust emission | Less than 1 mg/m³ of air, in some cases less than 0.5 mg/m³ |
| Options | Actuator for setting the working height, multi-position gun holder, turntable Ø 500 mm for 50 kg, magnetic separator, frontal door opening, closable pass-through openings of 200 x 200 mm, and an attached microblasting unit |
Swipe the table to the left to see all columns.
From the technical data sheet of the PRO 0806/2.

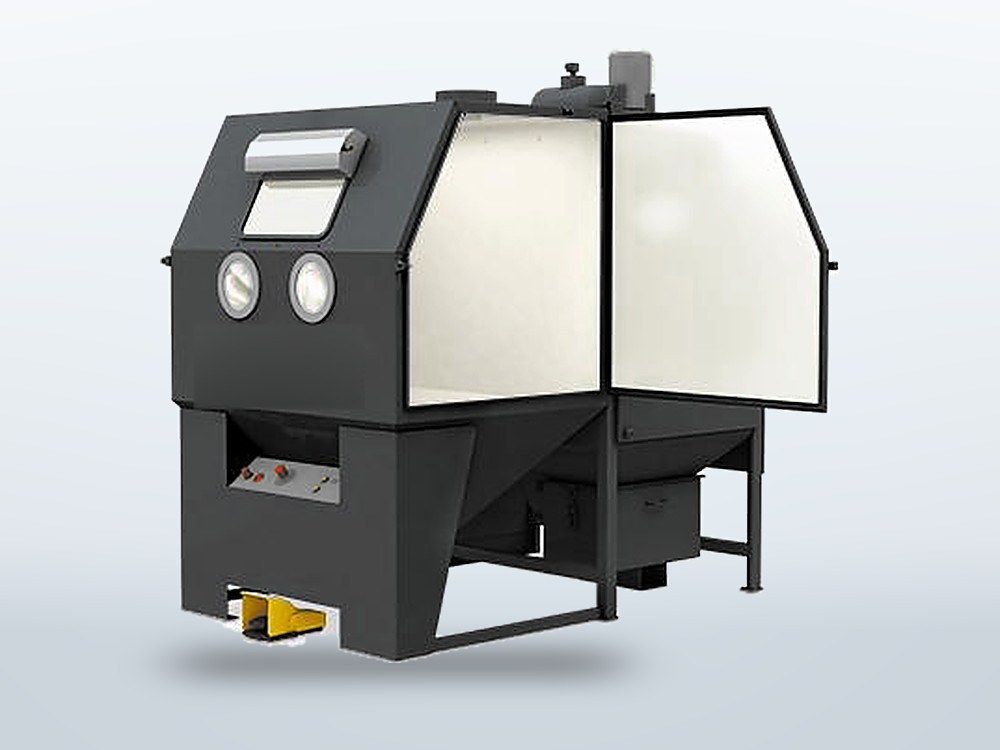

The ONE-impact line
Compact cabinets you set down and connect
Next to the modular PRO-impact cabinets there is a second line. On the ONE-impact cabinets the blast chamber, the cyclone recovery and the cartridge filter sit in the same frame. You set it in place, connect compressed air and power, and you blast. Four sizes, each in a suction or a pressure version, plus the ECO entry-level cabinet. The four digits give roughly the width and the depth of the blast chamber in decimetres. Give us the dimensions of your part and we will point you to the right model.

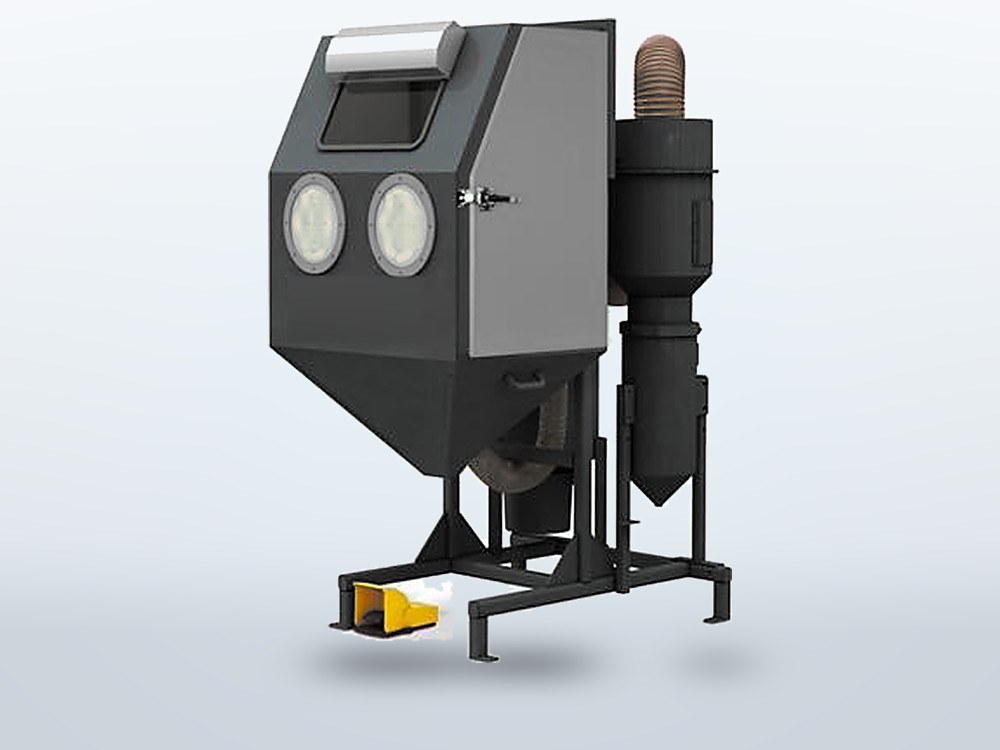

Phibo ONE 0907
The smallest of the four ONE sizes, adjustable in height
The frame adjusts in height from 1550 to 1870 mm. The operator works seated or standing, at his own height, which counts during long blasting sessions. The blast chamber measures 910 x 700 x 965 mm and the abrasive stays in circulation through the cyclone.
- Blast chamber 910 x 700 x 965 mm
- Frame adjustable from 1550 to 1870 mm
- 20 l blast pot in the pressure version
- Abrasive with a grain below 0.8 mm
Every specification of the ONE 0907
| Feature | Value |
|---|---|
| Versions | Suction (S) or pressure (P) |
| Blast chamber W x D x H | 910 x 700 x 965 mm |
| External dimensions W x D x H | 1200 x 1420 x 1550 to 1870 mm |
| Working height | The frame adjusts from 1550 to 1870 mm, for seated or standing work |
| Weight | 350 kg |
| Door opening W x H | 620 x 875 mm, one door |
| Blast pot | 20 l, in the pressure version |
| Blasting pressure | 0 to 7 bar |

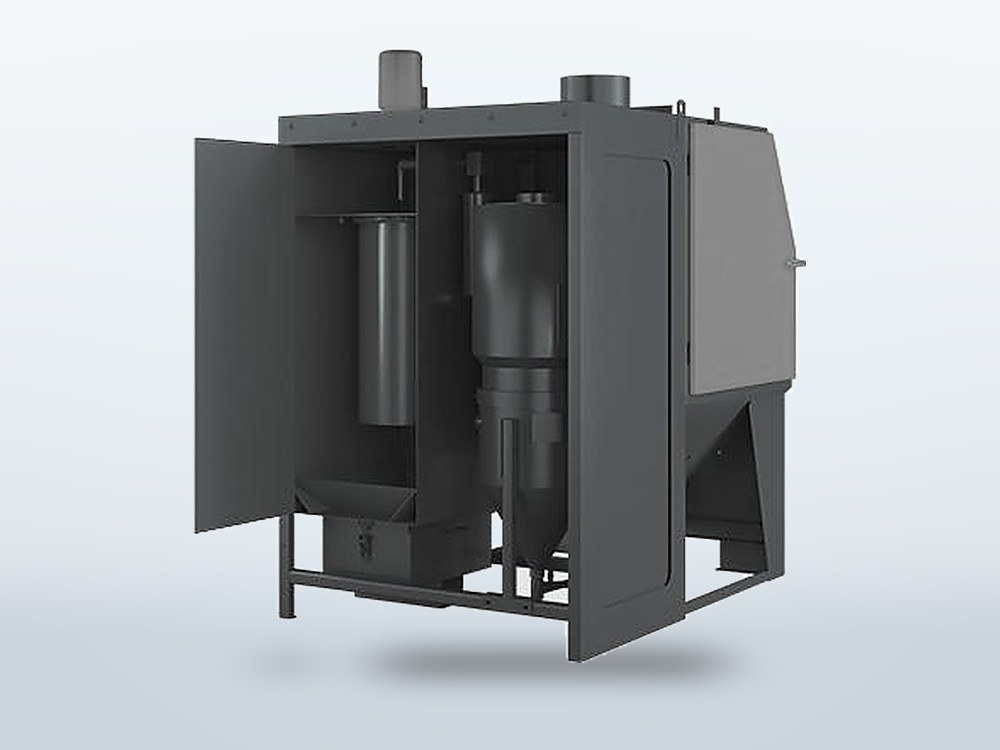

| Recovery | Cyclone for the abrasive and a cartridge filter for the dust, in the same frame |
| Abrasive | Every common abrasive with a grain below 0.8 mm |
| Steel grit | Not allowed |
| Operating temperature | 15 to 30 °C |
| Electrical connection | 16 A |
| Application | Smaller blasting work: cleaning, deburring, refining and roughening |
Swipe the table to the left to see all columns.
From the technical data sheet of the ONE 0907. Approximate values, they may differ with the configuration and the arrangement.
Phibo ONE 0909, ONE 1310 and ONE 1313
Three sizes on the same build
The same cabinet in three sizes: the ONE 0909 for parts up to about 90 cm, the ONE 1310 and the ONE 1313 with a blast chamber 1290 mm wide and a 40 l blast pot. The difference between those two is the depth of the chamber, 1020 against 1320 mm. Each of the three comes in a suction and a pressure version, and both large sizes have a Duo version with two filter cartridges instead of one, for dusty processes and long service hours.
Every specification of the ONE 0909
| Feature | Value |
|---|---|
| Versions | Suction (S) or pressure (P) |
| Blast chamber W x D x H | 925 x 905 x 995 mm |
| External dimensions W x D x H | 1050 x 1690 x 2100 mm |
| Weight | 460 kg |
| Door opening W x H | 800 x 875 mm |
| Blast pot | 20 l, in the pressure version |
| Blasting pressure | 0 to 7 bar |
| Recovery | Cyclone and cartridge filter, in the same frame |
| Abrasive | Every common abrasive except steel grit |
| Operating temperature | 15 to 30 °C |
| Electrical connection | 16 A |
| Floor space | About 7.5 m²: cabinet, loading truck, filter, cyclone, blast pot and working area |
Swipe the table to the left to see all columns.
From the technical data sheet of the ONE 0909.
Every specification of the ONE 1310 and the ONE 1310 Duo
| Feature | Value |
|---|---|
| Versions | Suction (S) or pressure (P) |
| Blast chamber W x D x H | 1290 x 1020 x 1150 mm |
| External dimensions W x D x H | 1355 x 1820 x 2100 mm; the Duo 1355 x 1930 x 2100 mm |
| Weight | 580 kg; the Duo 610 kg |
| Door opening W x H | 940 x 975 mm |
| Blast pot | 40 l, in the pressure version |
| Filter cartridges | One cartridge; the ONE 1310 Duo carries two, for dusty processes and long service hours |
| Blasting pressure | 0 to 7 bar |
| Recovery | Cyclone and cartridge filter, in the same frame |
| Abrasive | Every common abrasive |
| Steel grit | Only with the optional 2.2 kW motor |
| Operating temperature | 15 to 30 °C |
| Electrical connection | 16 A |
| Floor space | About 10 m²: cabinet, loading truck, filter, cyclone, blast pot and working area |

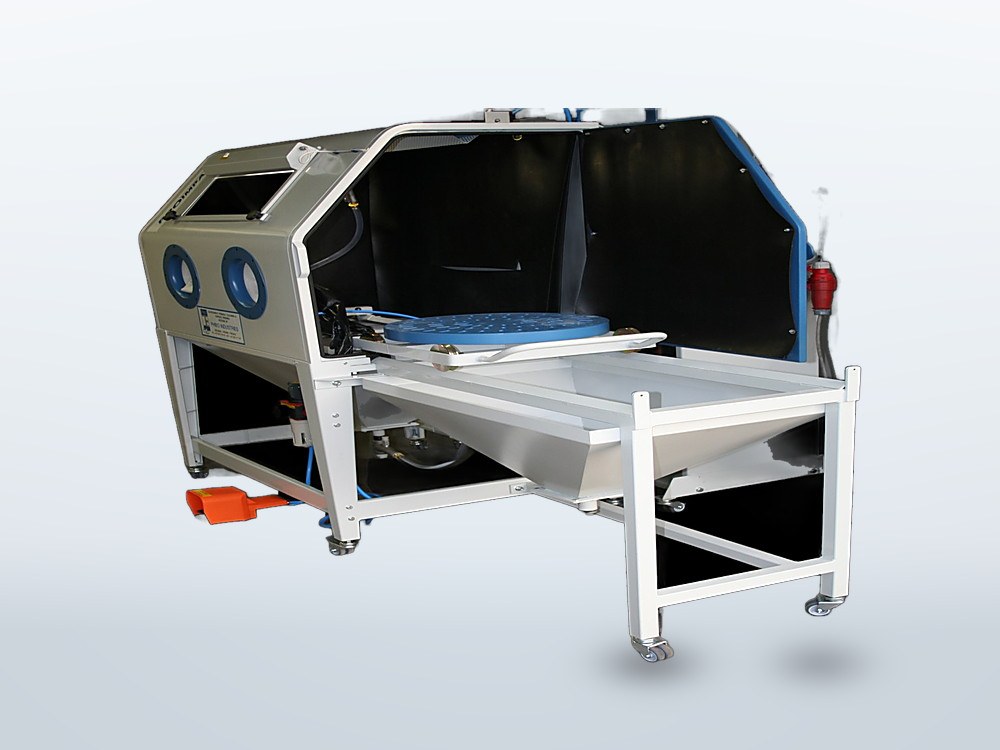

| Accessories | Among others a turntable or a loading truck for heavy and bulky parts |
Swipe the table to the left to see all columns.
From the technical data sheet of the ONE 1310.
Every specification of the ONE 1313 and the ONE 1313 Duo
| Feature | Value |
|---|---|
| Versions | Suction (S) or pressure (P) |
| Blast chamber W x D x H | 1290 x 1320 x 1150 mm |
| External dimensions W x D x H | 1355 x 2080 x 2100 mm; the Duo 1355 x 2180 x 2100 mm |
| Weight | 650 kg; the Duo 680 kg |
| Door opening W x H | 940 x 975 mm |
| Blast pot | 40 l, in the pressure version |
| Filter cartridges | One cartridge; the ONE 1313 Duo carries two, for dusty processes and long service hours |
| Blasting pressure | 0 to 7 bar |
| Recovery | Cyclone and cartridge filter, in the same frame |
| Abrasive | Every common abrasive |
| Steel grit | Only with the optional 2.2 kW motor |
| Operating temperature | 15 to 30 °C |
| Electrical connection | 16 A |
| Floor space | About 11 m²: cabinet, loading truck, filter, cyclone, blast pot and working area |
| Accessories | Among others a turntable or a loading truck for heavy and bulky parts |
Swipe the table to the left to see all columns.
From the technical data sheet of the ONE 1313.

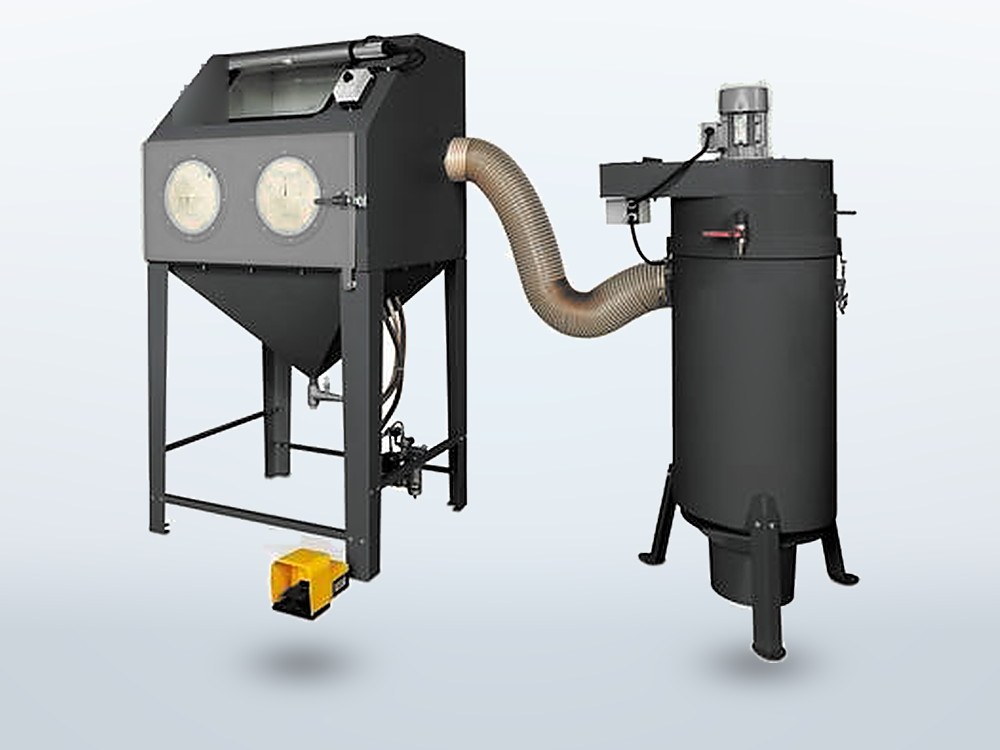

Phibo ECO
The entry-level cabinet, suction only
The simplest cabinet in the range, fully equipped for smaller blasting work. The cartridge filter stands separately beside it and keeps the workplace free of dust. Its simple build also allows it to be delivered as a kit in a single box, to assemble yourself.
- Blast chamber 900 x 750 x 780 mm
- Floor space 2 to 3 m²
- 8 mm nozzle, or 6.5 mm for finer work
- Also available as a kit
Every specification of the ECO cabinet
| Feature | Value |
|---|---|
| Version | Suction only (S) |
| Blast chamber W x D x H | 900 x 750 x 780 mm |
| External dimensions W x D x H | 900 x 780 x 1780 mm; with the cartridge filter beside it, 630 mm wider and 600 mm deeper |
| Door opening W x H | 790 x 330 mm, and that sets the maximum height of what you can load |
| Weight | 150 kg, without the cartridge filter |
| Electrical connection | For the cartridge filter; we state the value in the quote |
| Blast nozzle | 8 mm as standard, 6.5 mm possible |
| Air consumption | 0.78 m³/min at 4 bar with the 8 mm nozzle, 0.46 m³/min at 4 bar with the 6.5 mm nozzle |
| Filtration | Cartridge filter, placed separately beside the cabinet |
| Abrasive | Every common abrasive |
| Operating temperature | From 12 °C |
| Floor space | 2 to 3 m² |
| Delivery | Fully assembled, or as a kit in a single box |
| Application | Smaller blasting work |
Swipe the table to the left to see all columns.
From the technical data sheet of the ECO cabinet.

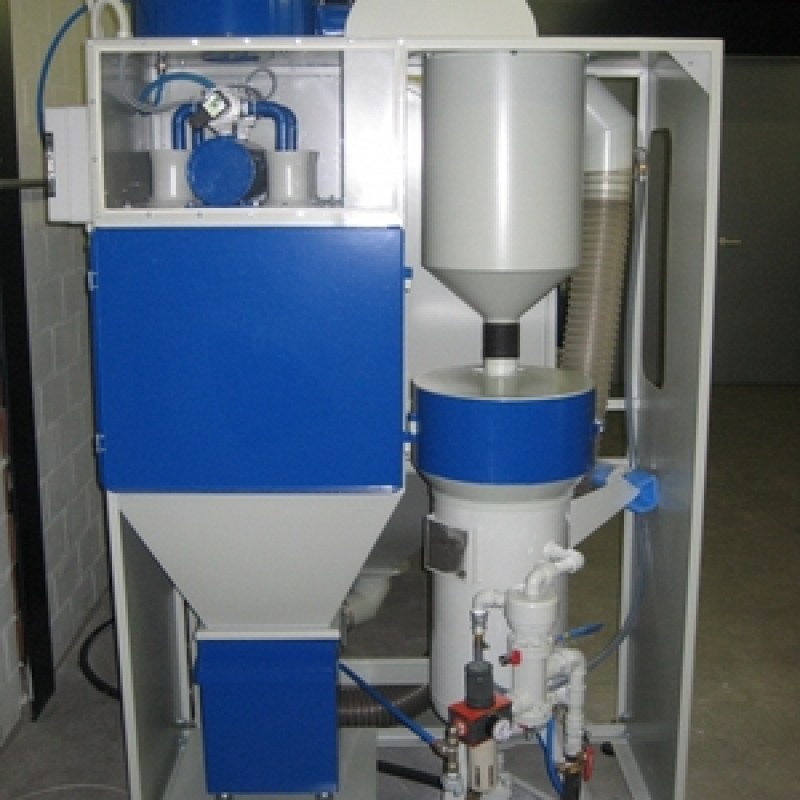

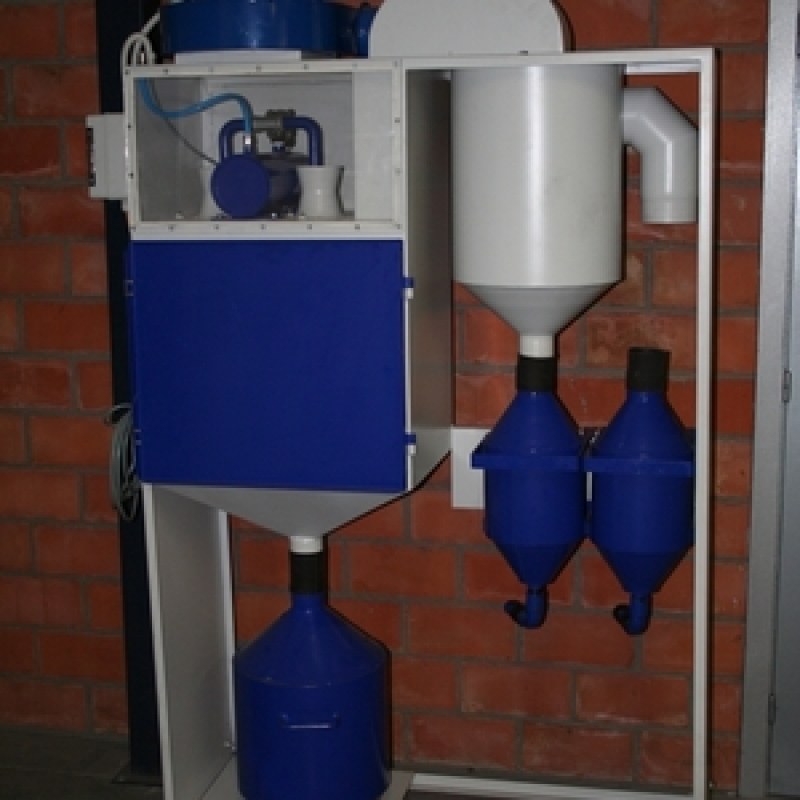

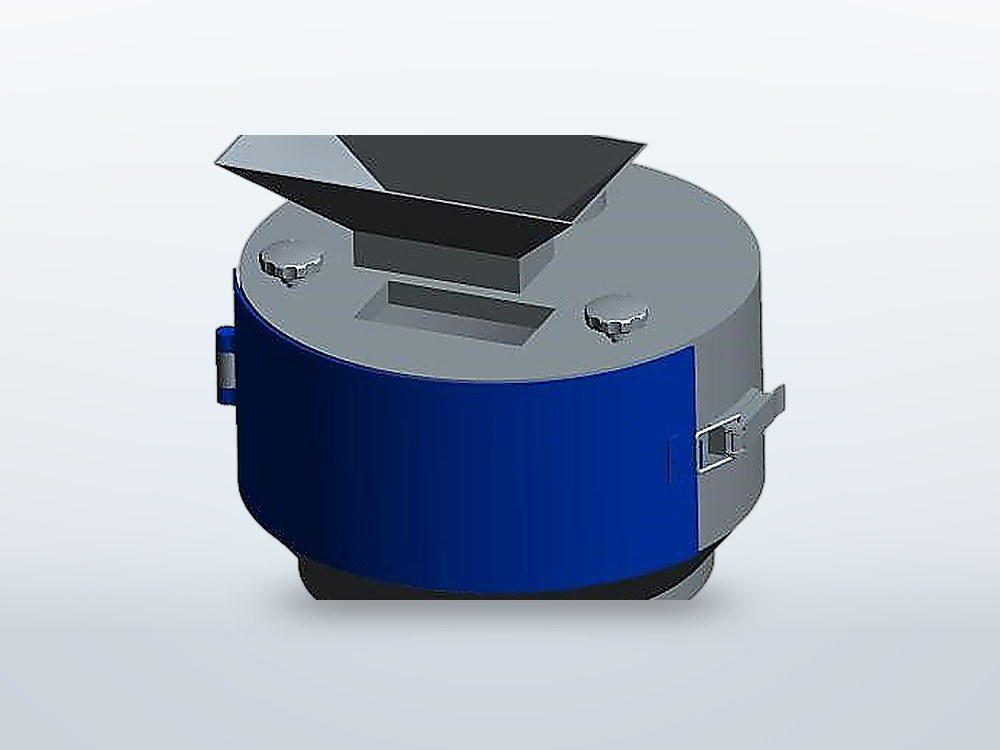

Recovery and filtration
Where the abrasive and the dust end up
The abrasive stays in circulation, the dust goes to the filter. The view inside the cabinet stays clear, and the cleaned air returns to the workshop.
The cyclone separates 90 per cent
The recovery and recycling unit cleans the extracted abrasive by centrifugal action. Broken-down abrasive, dust and other impurities go to the filter, the cleaned abrasive to a buffer silo.
Back into circuit
From the buffer silo the abrasive goes to the interchangeable collector in the suction version, or to the removable blast pot in the pressure version. Blasting results stay reproducible over time.
Filters that clean themselves
A cartridge filter captures the dust from the extracted air in cylindrical cartridges and cleans them itself with compressed air pulses, after which the dust falls into a removable container. The cartridges are made of antistatic material. You set the interval between two injections and the pulse time to the type of dust.
Dust emission below 5 mg/m³
In most cases even below 1.5 mg/m³. The cleaned air can therefore be returned to the workshop without difficulty.
A version without a cyclone
The cartridge filters also exist in a version without a cyclone. The cyclone can be added later.
The filter unit
Two cartridge filters, chosen on the extraction rate
The Phibo F1500 pulls 1500 m³/h at 0.87 kW with 12 m² of filter surface, the Phibo F3100 pulls 3100 m³/h at 2.20 kW with 64 m². Which unit belongs with your cabinet is something we settle in the proposal, together with the layout.
Specifications of the cartridge filters
| Feature | Phibo F1500 | Phibo F3100 |
|---|---|---|
| Dimensions W x D x H | 1300 x 700 x 2100 mm | 1700 x 900 x 2500 mm |
| Extraction rate | 1500 m³/h | 3100 m³/h |
| Connection | Ø 120 mm | Ø 120 mm |
| Power | 0.87 kW | 2.20 kW |
| Filter surface | 12 m² | 64 m² |
| Weight | 180 kg | 250 kg |
Swipe the table to the left to see all columns.
Approximate rates. The PRO 0806/2 has its own unit, the Phibo F800 of 800 m³/h. The four ONE sizes carry their cartridge filter in the same frame; on the ECO cabinet it stands separately beside it.
Layout
Compact or separated, you choose to suit your floor space
The cabinet and the recycling unit with the filter form one modular whole. Tell us how much floor space you have and we will draw the layout into the proposal.
Compact layout
The filtration and recovery unit stands against the cabinet. One block, minimum floor space.
Separated layout
The unit stands away from the cabinet, connected by the extraction duct. For anyone who wants the area around the cabinet clear.
Options
What you add, and what it does
Every PRO-impact cabinet can be extended with the options below, from an acoustic kit that cuts the noise level by around 10 dB(A) to a magnetic separator that keeps iron particles out of the abrasive. The PRO 0806/2 has its own option list.
Every option, and what it does
| Option | What it does |
|---|---|
| Manual turntable | The part turns inside the cabinet, so you do not have to take it out to reposition it. |

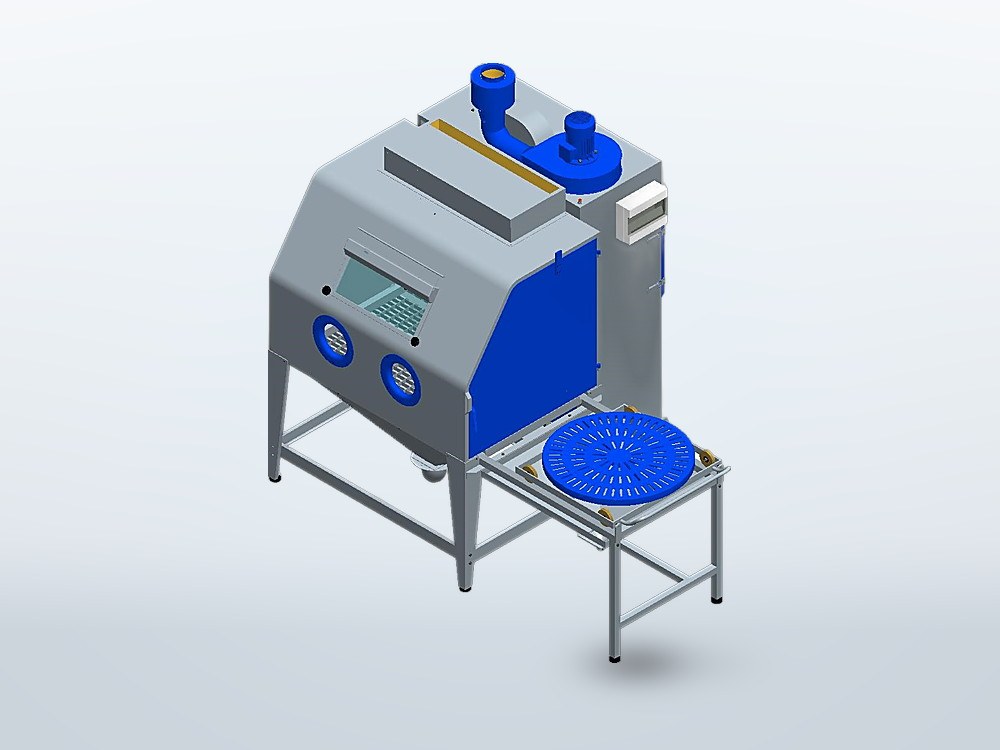

| Acoustic kit | An acoustic housing on top of the cabinet encloses the intake openings, and a silencer on the fan outlet absorbs the fan noise. Together they cut the noise level during blasting by around 10 dB(A). Ask us for the sound pressure level of the cabinet size and version you are considering. |

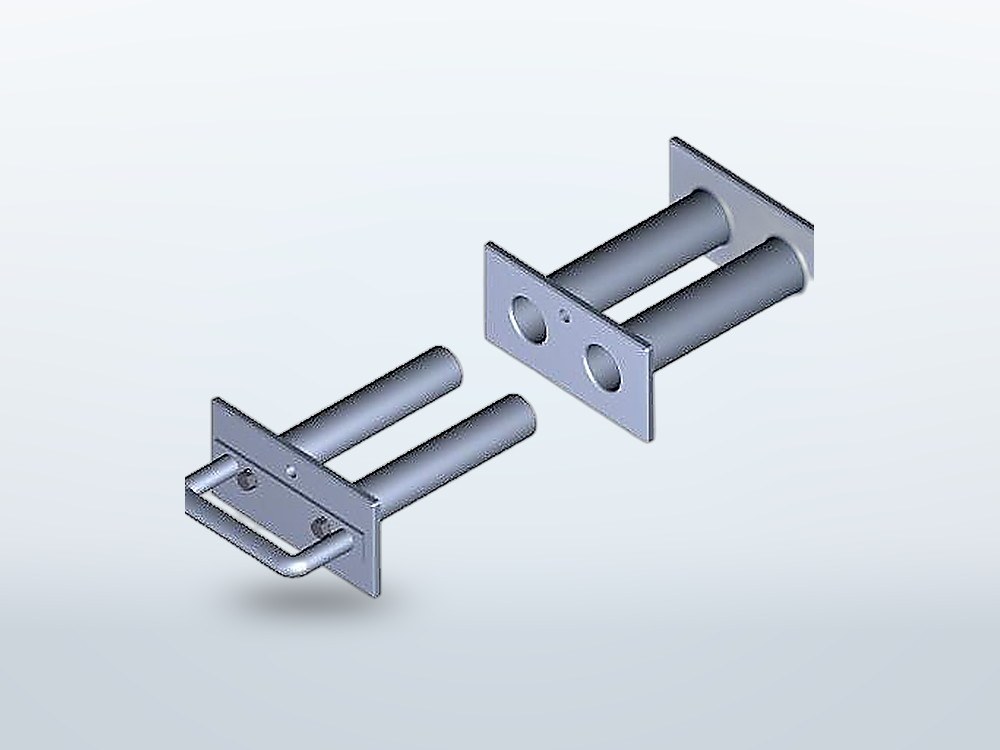

| Magnetic separator | A magnetic grid in the silo of the recycling unit holds back iron particles, so they do not contaminate your blasted parts. 14,000 Gauss, removes microparticles from 30 µ and sometimes stainless steel particles. Holder in stainless steel 304, maintenance free. |
| External loading table with turntable | Funnel-shaped loading table with a turntable on a trolley, movable on rails. For loading heavy or complex parts. The funnel catches abrasive that slides off, so it can be recycled and nothing ends up on the floor. |
| Venturi blow gun | Adjustable air flow with progressive grip control. Air consumption 200 l/min at 4 bar, blowing volume 6,600 l/min, noise level around 45 dB(A). |

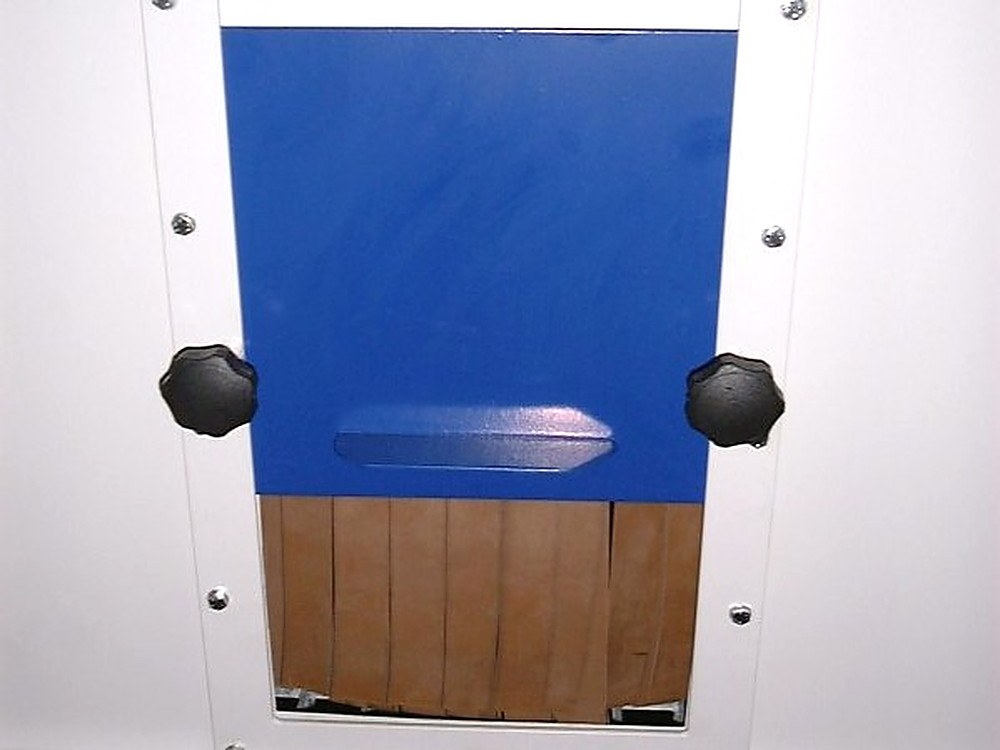

| Lateral openings in the door or cabinet wall | For long parts such as tubes and profiles. Available in around 200 x 200 mm or 400 x 400 mm, closed by a hatch and two rows of rubber curtains. |
| Second lateral door on the left | Access from both sides of the cabinet. |
| Frontal door opening | Instead of the lateral door. Opens across the full width and height, with two gas struts and a door safety switch. |
| Additional abrasive vessels | To switch quickly between different abrasives. Suction version only. |
| Abrasive filling funnel | For refilling the silo of the recycling unit. |
| Pneumatic hour meter | Counts the running hours of the installation. |
Swipe the table to the left to see all columns.
Every option comes from the technical data sheet of the PRO-impact cabinets. The PRO 0806/2 has its own option list, in its table above.
Special versions
From hand blasting to an automated cycle
If no standard size fits, a version to measure is possible. A hand blast cabinet can also be automated.
What an automated version can carry: wheels to move the machine, a rotating turntable, oscillation systems for the blast guns, an automatic drum for batch treatment and conveying systems.
Consumables
Which abrasive runs inside a blast cabinet
In a closed cabinet with recovery the abrasive goes round the circuit many times. The cabinets are used for glass bead blasting, aluminium oxide blasting, shot peening and paint stripping, with abrasives that stand up to that, among them glass beads, ceramic beads and aluminium oxide.
From our own warehouse
We keep abrasives, spare parts and protective equipment in stock, so you order them from the same partner as the installation.
- Glass beads and ceramic beads
- Aluminium oxide and blasting grit
- Plastic media and walnut shell
- Blasting gloves and viewing windows
- Nozzles and blast guns
- Cartridge filters for the extraction
Your installation keeps running
Maintenance, repair and spare parts, directly from Phibo, by our own technicians.
Maintenance
Preventive maintenance in our workshop or at your site. After every service your settings and consumption are reviewed.
More about this service
Spare parts
Blast pots, hoses, guns, rubber flaps and filter cartridges from stock. Non-standard parts we make ourselves.
More about this service
Revision and retrofitting
Modernise an existing installation or convert it to a new process. Revised second-hand installations too.
More about this service
Training
Hands-on training at commissioning, standard with SublimotionProcess® and on request with the other installations. When staff change, we repeat it to suit your team.
More about this serviceLooking further
No cabinet that fits your workpiece?
Then the answer lies in another blasting technique or in an installation built to measure.
We call you and go through your application
Send us the dimensions and weight of your parts, what has to come off and the number per day. You get a proposal with the cabinet size and the version that fit. One partner, from the first conversation to the last spare part.
- The dimensions and the weight of your parts
- What has to come off: rust, paint, mill scale, casting residue or burrs
- The number of parts per day
