MVS² mobile vacuum blast machine
The MVS² is a mobile vacuum blast machine for detail work: a 10 litre hopper, three brushes, and a gun that projects the abrasive and extracts it in the same movement. For larger surfaces and continuous work there are the closed circuit machines from 9 to 48 litres.
- Hopper of 10 litres, abrasive circulating in a closed circuit
- Three brushes: flat, internal corner and external corner
- Blasting and extraction hose of 5 metres
- No masking beforehand, no clean-up afterwards
The technique
Projecting and extracting in one movement
A brush around the nozzle seals against the surface. The gun extracts more air than leaves the nozzle, so everything you blast off travels inwards. The abrasive passes through a separator and returns to the hopper cleaned.
No masking beforehand
You do not have to cover the surroundings. That shortens the preparation, and colleagues keep working next to you.
The abrasive stays inside the machine
You sweep nothing up and you dispose of no contaminated abrasive. The difference with the heavier closed circuit machines is size: the MVS² is meant for local work, with a 5 metre hose.
Usable indoors as well
The installation passes through an ordinary doorway and works in an occupied room or one that stays in service.
References
They trust the surface technology of Phibo
The set
Everything you need, as one whole
The package is put together for the work itself, hoses and couplings included. There is nothing to source on the side.
Blasting and stripping unit
Mobile, with an integrated recovery system, a 10 litre hopper and a filter pressure regulator.

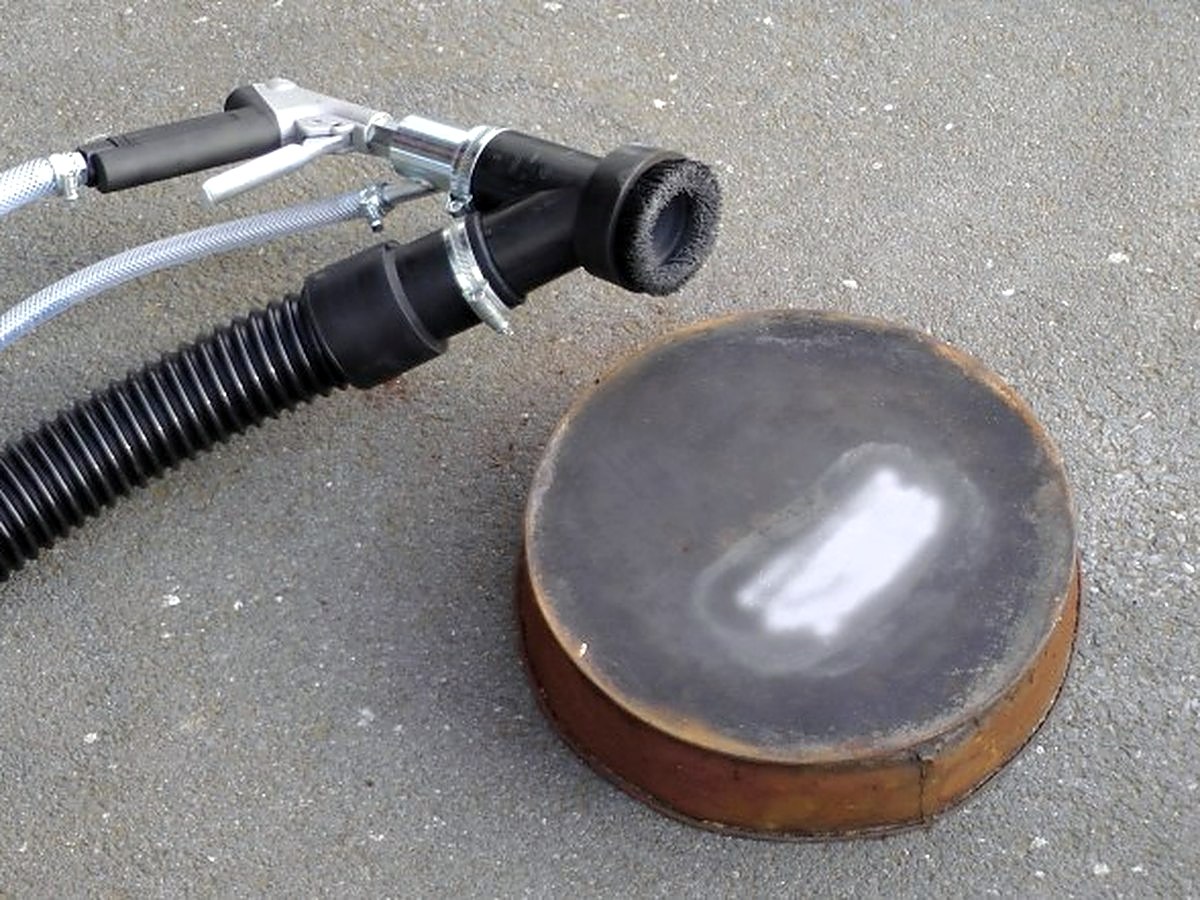

Brush gun and brushes
Trigger control, a boron carbide nozzle, and three brushes for a flat surface, an internal corner and an external corner.
Screw compressor and aftercooler
Up to 1,300 l/min, 15.5 kW and 76 dB(A), with an external aftercooler for condensate free compressed air.
Hoses and protection
Blasting and extraction hose of 5 m, air hose of 10 m with safety couplings, plus visual and hearing protection.

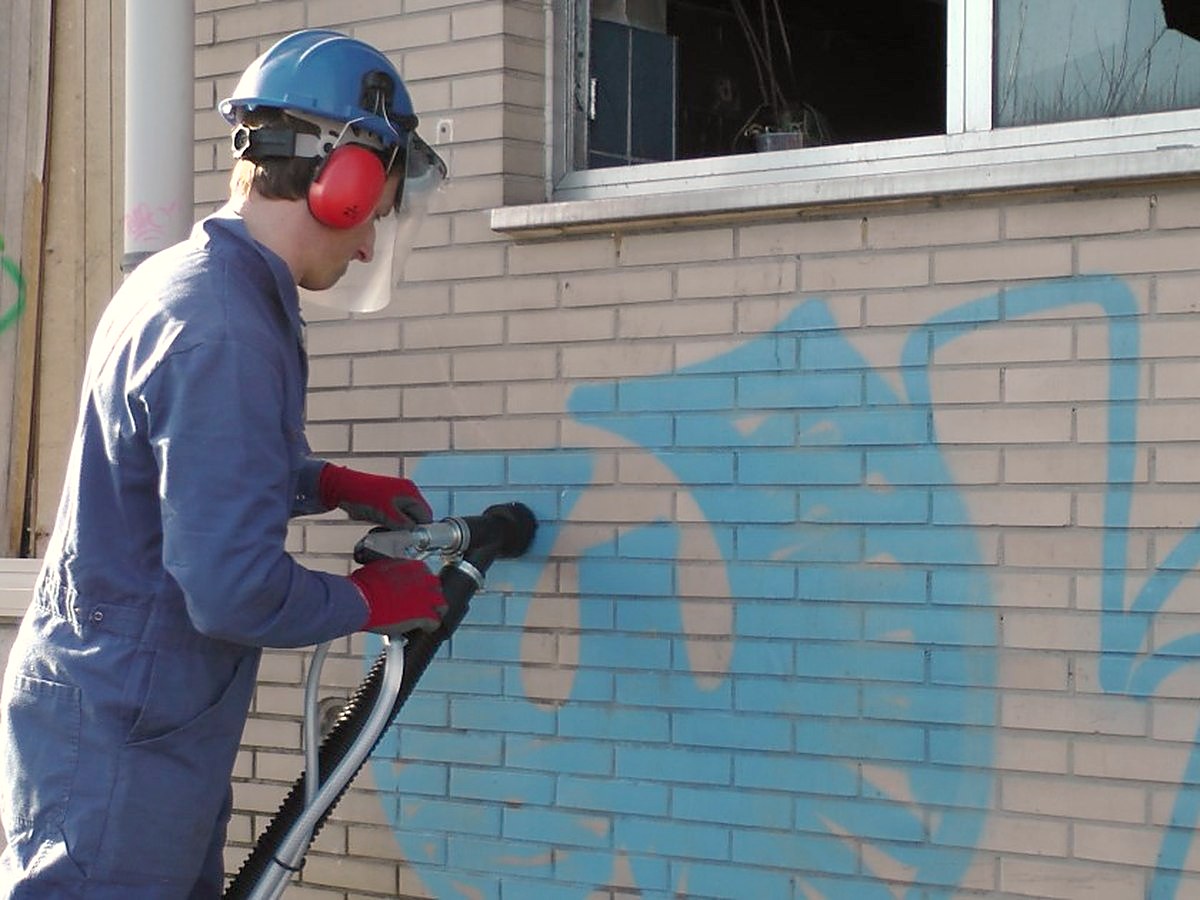

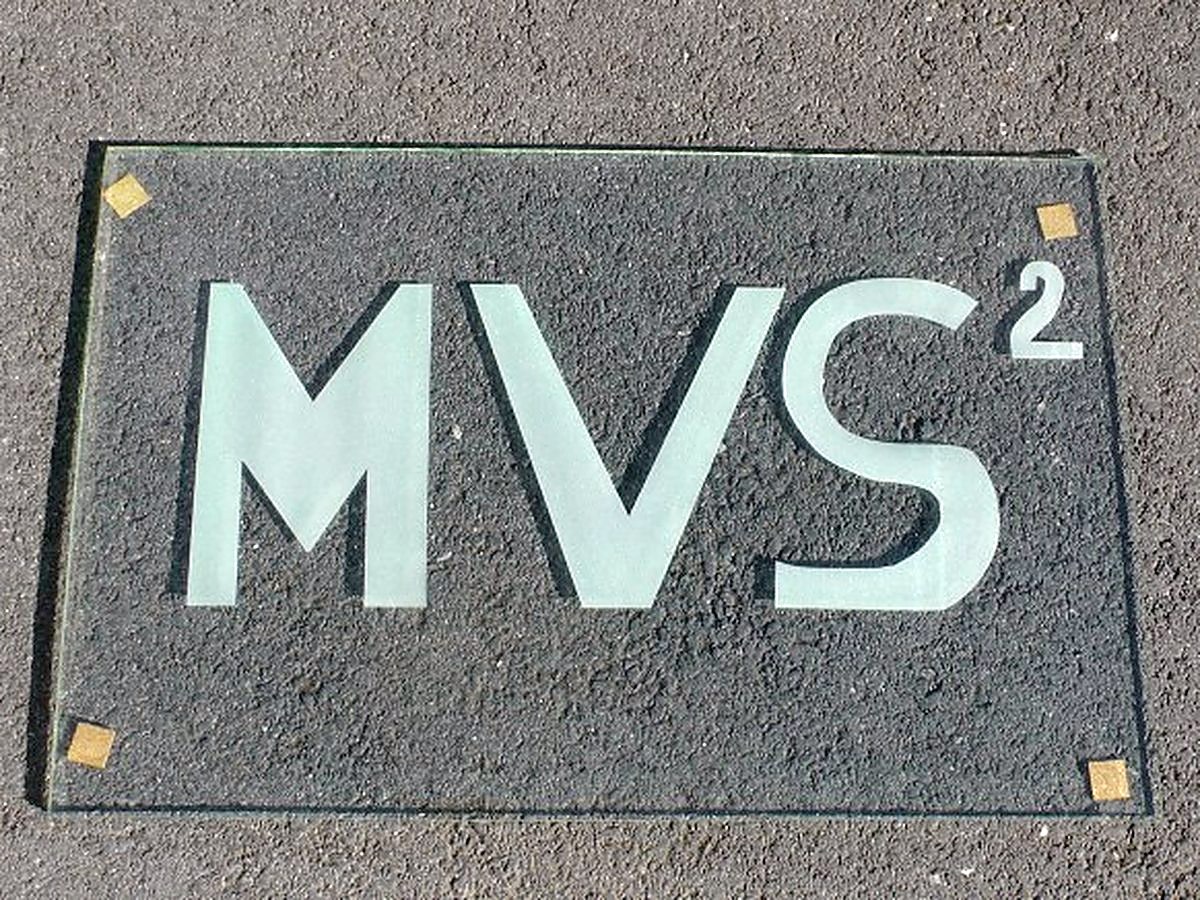

Applications
Where the MVS² is used
The MVS² is a micro blasting system. It is at its best where the area is small, or where the surroundings must stay clean.
Specifications
Every pressure, length and grain size of the MVS²
The complete installation was reviewed for safety and found EC compliant. On delivery you receive the declaration of conformity for the assembled system.
- Extraction is pneumatic, so no separate vacuum cleaner is needed
- The abrasive is separated from dust and dirt on the way back
- A test on a hidden spot fixes the parameters
- The compressor has a return line for the condensate
Technical data for the MVS²
| MVS² | |
|---|---|
| Abrasive hopper | 10 litres as standard |
| Extraction | pneumatic venturi, built into the unit |
| Recovery | integrated, the abrasive circulates in a closed circuit |
| Blasting pressure | usually 2 to 6 bar, depending on the application |
| Blasting gun | brush gun with trigger control |
| Blasting nozzle | boron carbide |
| Brushes | three pieces: flat, internal corner and external corner |
| Pressure control | filter pressure regulator for the working pressure |
| Blasting and extraction hose | 5 m |
| Air hose | 10 m, with safety couplings |
| Compressor | screw compressor with its own engine, up to 1,300 l/min |
| Engine power | 15.5 kW |
| Sound pressure level of the compressor | 76 dB(A) |
| Compressed air | external aftercooler for condensate free air |
| Conformity | the applicable European directive for machinery |
| On delivery | EC declaration of conformity for the assembled compressed air system |
Swipe the table to the left to see all columns.
The figures come from the technical data sheet of the MVS². Extraction is pneumatic, so no separate vacuum cleaner is needed.
Recommended blasting media for the MVS²
| Type | Nature | Bulk density | Hardness (Mohs) | Grain size | Colour | Packaging |
|---|---|---|---|---|---|---|
| Corundum | Al₂O₃ | 1.59 to 1.98 kg/l | 9 | 62, 74, 125 and 149 µm | brown | 25 kg, pallet of 1,000 kg |
| Glass beads | SiO₂ and Na₂O | 1.50 kg/l | 5 | 40 to 70, 70 to 110 and 90 to 150 µm | white | 25 kg, pallet of 1,000 kg |
| Ceramic beads | ZrO₂ and SiO₂ | 2.30 kg/l | 7 to 9 | 70 to 125 and 125 to 250 µm | white | 25 kg, pallet of 500 kg |
Swipe the table to the left to see all columns.
Other types and grain sizes are available on request. The fine grains are meant for soft substrates, the coarser ones for rust, paint and hard surfaces.
Consumables
Which abrasive circulates in the MVS²
Because the abrasive circulates in a closed circuit, how long the grain lasts matters. Ceramic beads are the hardest and the heaviest of the three. The fine grain sizes are meant for soft substrates, the coarser ones for rust, paint and hard surfaces.
From our own warehouse
- Corundum from 62 to 149 µm
- Glass beads from 40 to 150 µm
- Ceramic beads from 70 to 250 µm
- Other types and grain sizes on request
Your installation keeps running
The brushes, the nozzle and the hoses wear under intensive use. The brush seals against the surface, so that is the part you replace most often.
Maintenance
Preventive maintenance in our workshop or at your site. After every service your settings and consumption are reviewed.
More about this service
Spare parts
Blast pots, hoses, guns, rubber flaps and filter cartridges from stock. Non-standard parts we make ourselves.
More about this service
Revision and retrofitting
Modernise an existing installation or convert it to a new process. Revised second-hand installations too.
More about this service
Training
Hands-on training at commissioning, standard with SublimotionProcess® and on request with the other installations. When staff change, we repeat it to suit your team.
More about this serviceWe call you and go through your application
Tell us what you are treating and where it stands. A proposal with the right set and the right abrasive follows after that. Fill in the form below.
- What you are blasting, and how large the surface is
- The contamination by name: rust, coating, mill scale, deposit
- Where the work stands: on site, inside a building or in your workshop
