Personal protective equipment
Phibo PH-P with a panoramic lens, Phibo PH-R with a rectangular lens. For each helmet the exploded view and every part with its order reference.

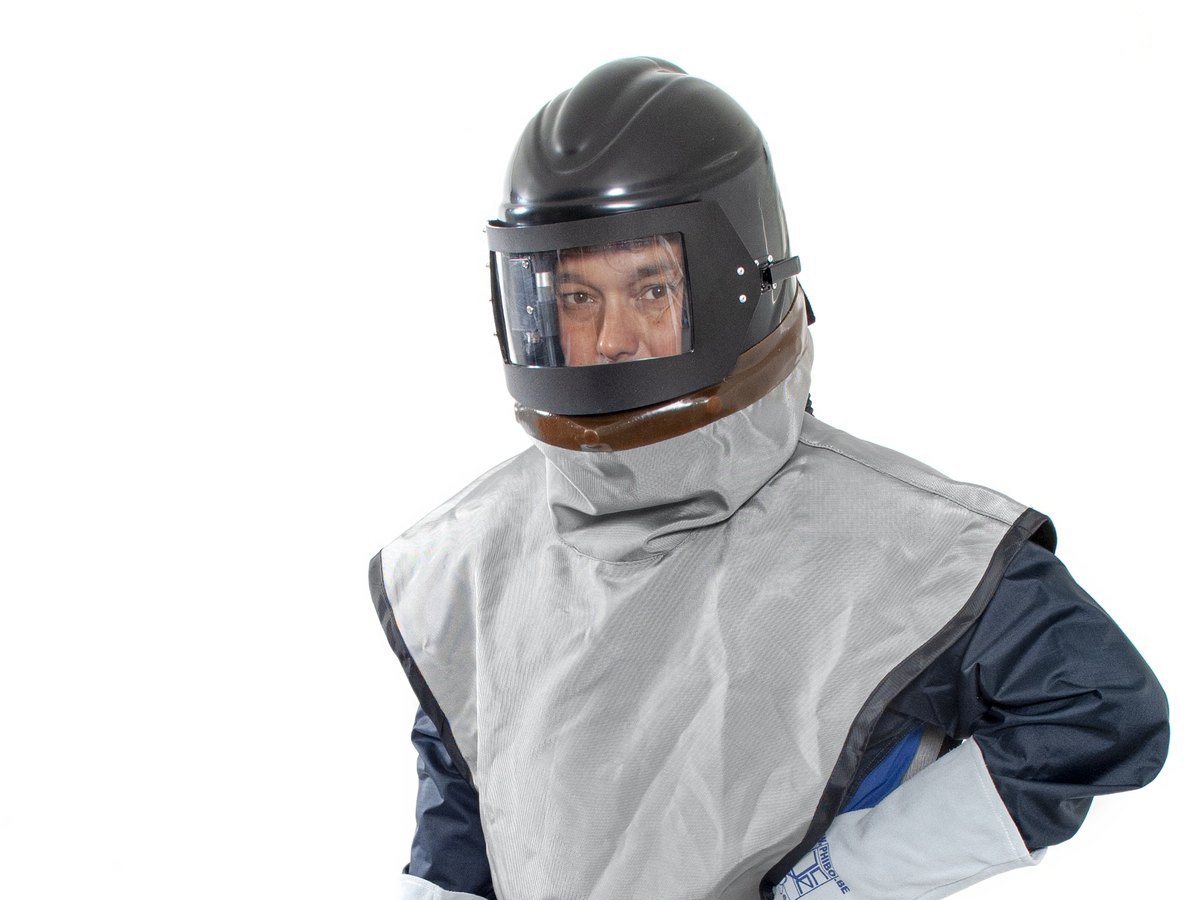

A sandblasting helmet, or blast helmet, is an air-fed helmet that protects the operator's head, face, eyes and ears against rebounding abrasive and dust during blasting.
The difference is the lens: panoramic for a wide field of view, rectangular with three layers. Which helmet do you have? A panoramic lens is the PH-P, a rectangular lens frame the PH-R. Not sure? Send a photo via WhatsApp. Replacing a lens or part? Give the order reference from the table.

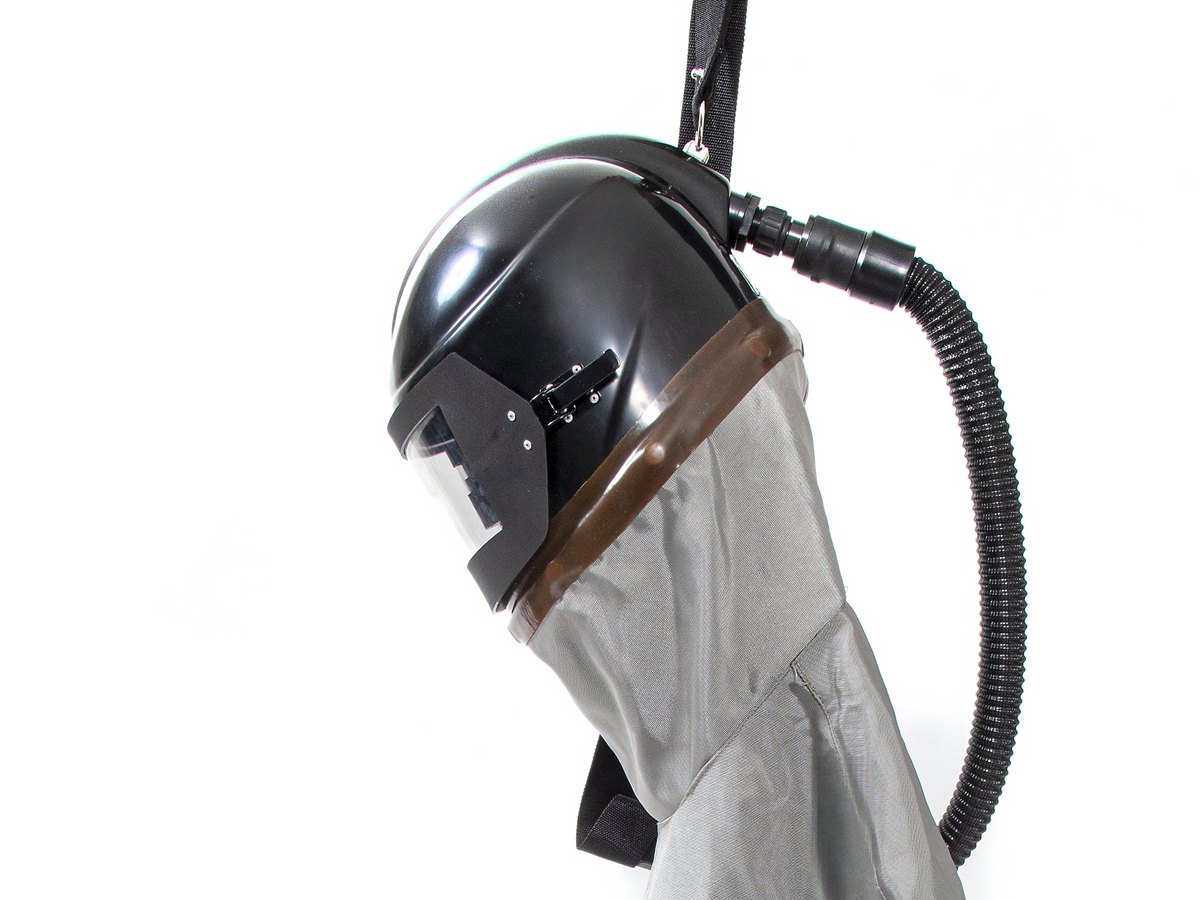

Panoramic lens

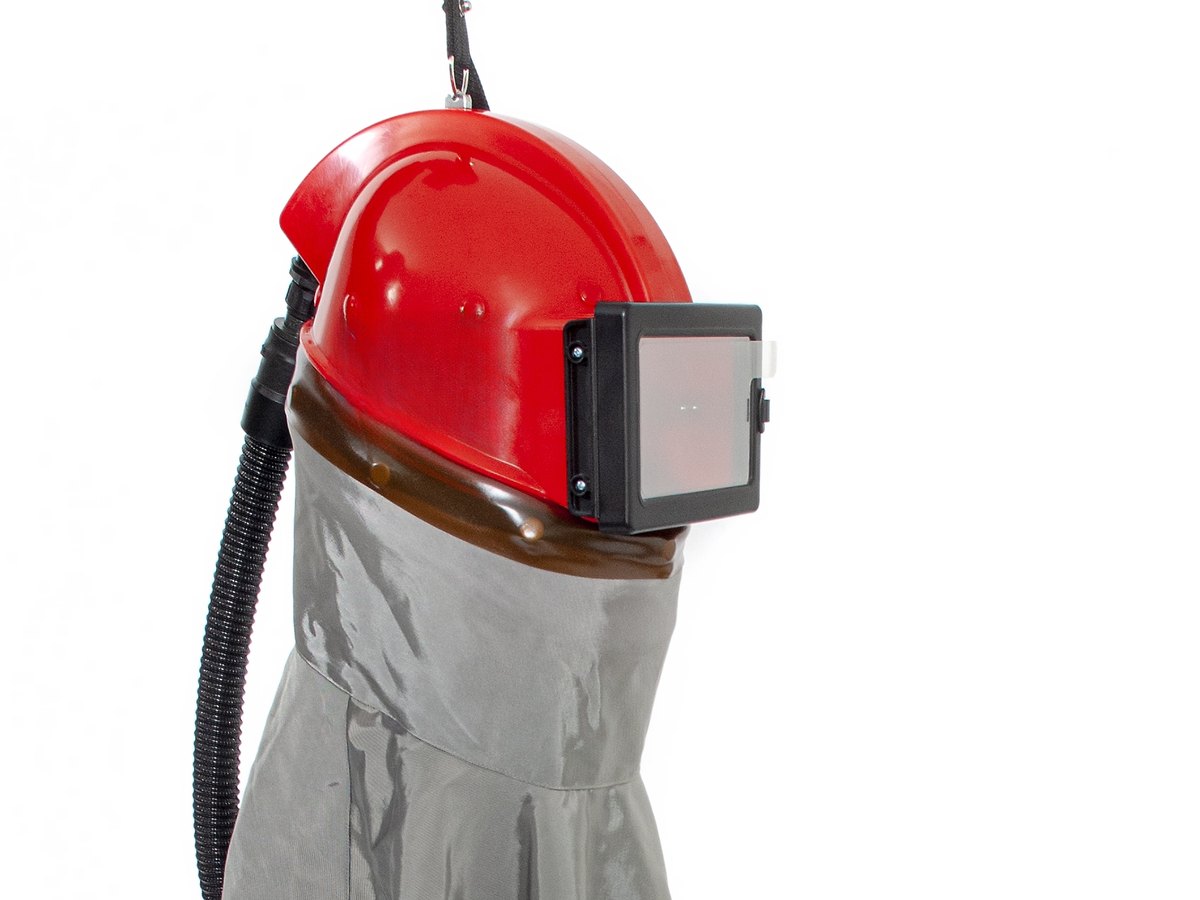

Rectangular lens
Click a number in the drawing and the row with the order reference lights up. The plus sign adds the part to your quote list.
| No. | Part | Order reference | Add to quote |
|---|---|---|---|
| Blast helmet Phibo PH-P complete, with flow regulator | PH-P | ||
| Blast helmet Phibo PH-P complete, with climate unit CL19 | PH-P CL19 | ||
| Blast helmet Phibo PH-P complete, with climate unit CL15 Duo | PH-P CL15 Duo | ||
| 1 | Breathing air flow regulator, with belt | PH-P-01 | |
| 2 | Climate unit Phibo CL19 (cooling), with belt | CL19 | |
| 3 | Climate unit Phibo CL15 Duo (cooling and heating), with belt | CL15 Duo | |
| 4 | Breathing hose, from helmet to regulator | PH-P-04 | |
| 5 | Inner shell foam | PH-P-05 | |
| 6 | Airflow indicator (set) | PH-P-06 | |
| 7 | Air supply (set) | PH-P-07 | |
| 8 | Helmet shell | PH-P-08 | |
| 9 | Carrying strap | PH-P-09 | |
| 10 | Inner shell | PH-P-10 | |
| 11 | Inner padding, standard | PH-P-11 | |
| 12 | Inner padding, large | PH-P-12 | |
| 13 | Inner padding, small | PH-P-13 | |
| 14 | Sealing band | PH-P-14 | |
| 15 | Standard protective cape with inner collar | PH-P-15 | |
| 16 | Leather protective cape with inner collar | PH-P-16 | |
| 17 | Lens frame latch | PH-P-17 | |
| 18 | Lens gasket | PH-P-18 | |
| 19 | Inner lens, per 20 | PH-P-19 | |
| 20 | Tear-off lens, per 100 | PH-P-20 | |
| 21 | Lens frame | PH-P-21 | |
| 22 | Inner collar | PH-P-22 | |
| 23 | Inner filling (neck roll) | PH-P-23 |
Click a number in the drawing and the row with the order reference lights up. The plus sign adds the part to your quote list.
| No. | Part | Order reference | Add to quote |
|---|---|---|---|
| Blast helmet Phibo PH-R complete, with flow regulator | PH-R | ||
| 1 | Breathing air flow regulator, with belt | PH-R-01 | |
| 2 | Climate unit Phibo CL19 (cooling), with belt | CL19 | |
| 3 | Climate unit Phibo CL15 Duo (cooling and heating), with belt | CL15 Duo | |
| 4 | Breathing hose, from helmet to regulator | PH-R-04 | |
| 5 | Hanging strap | PH-R-05 | |
| 6 | Helmet shell (set) | PH-R-06 | |
| 7 | Hook for the lens frame strap | PH-R-07 | |
| 8 | Lens frame strap | PH-R-08 | |
| 9 | Lens frame (set) | PH-R-09 | |
| 10 | Tear-off lens, per 100 | PH-R-10 | |
| 11 | Intermediate lens, per 50 | PH-R-11 | |
| 12 | Inner lens, per 20 | PH-R-12 | |
| 13 | Inner lens gasket | PH-R-13 | |
| 14 | O-ring | PH-R-14 | |
| 15 | Suspension harness | PH-R-15 | |
| 16 | Sealing band | PH-R-16 | |
| 17 | Standard protective cape with collar | PH-R-17 |
The compressed air from the compressor first passes the breathing air filter Phibo AF4. It removes oil mist, water vapour and dust down to 0.5 µm, for up to four operators at once.
A breathing air hose of 10 or 20 m with a safety quick coupling takes the air to the operator.

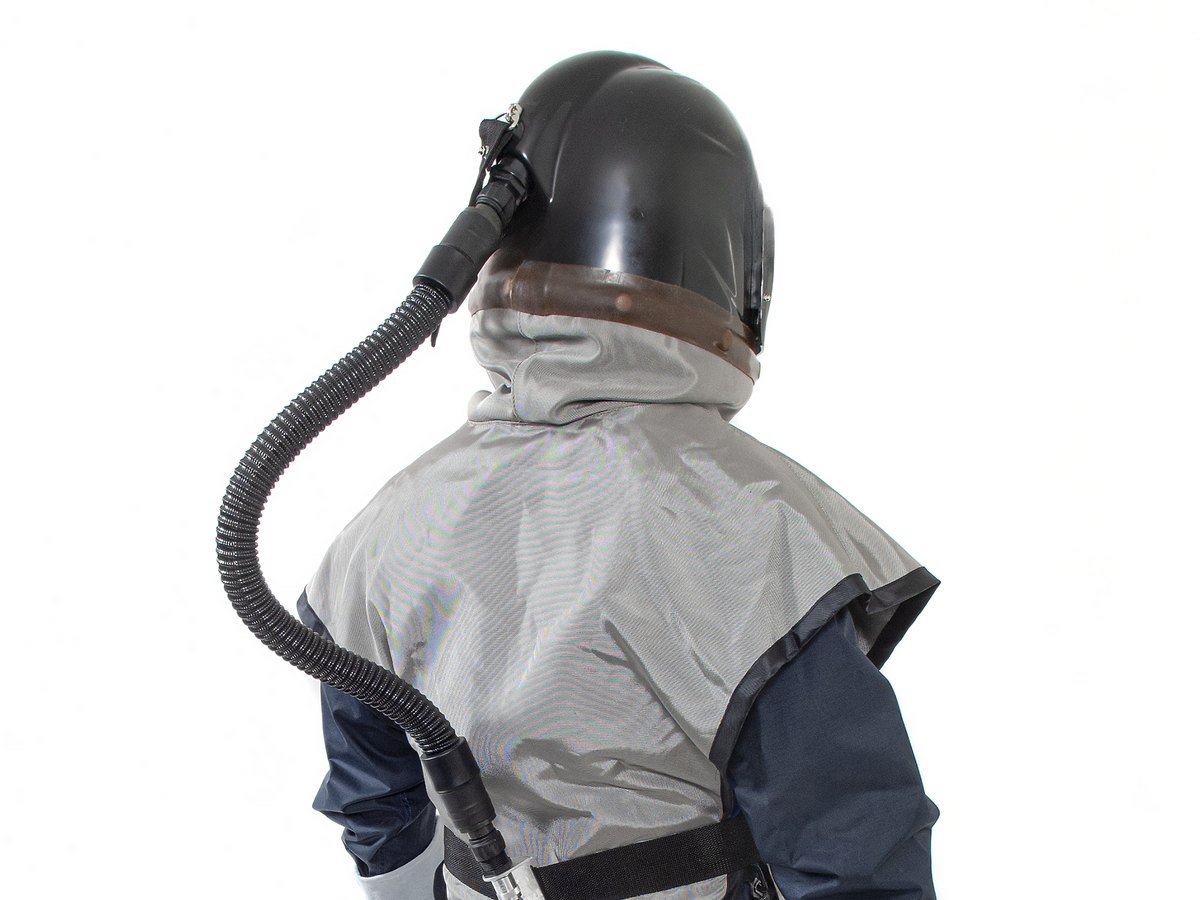

On the belt sits the flow regulator, or a climate unit CL19 or CL15 Duo. From there the breathing hose runs to the helmet.
| Accessory | Order reference | Add to quote |
|---|---|---|
| Breathing air filter Phibo AF4, for up to four operators | AF4 | |
| Filter cartridge for the AF4 | AF4-P | |
| Breathing air hose 10 m with safety quick coupling | ADS-10 | |
| Breathing air hose 20 m with safety quick coupling | ADS-20 | |
| Climate unit Phibo CL19, cools to 19 °C below ambient | CL19 | |
| Climate unit Phibo CL15 Duo, cools to 15 °C below or heats to 30 °C above ambient | CL15 Duo |
Swipe the table to the left to see all columns.
The filter does not remove carbon monoxide or carbon dioxide. Place the compressor intake in clean air.
A panoramic lens gives a wider field of view. The helmet with a rectangular lens frame uses an inner, intermediate and tear-off lens; the helmet with a panoramic lens uses an inner and a tear-off lens.
Yes. The supplied breathing air is adjusted with the control valve on the helmet, and both helmets can be fitted with a climate control unit that cools or heats the air.
A sandblasting helmet is personal protective equipment and must carry the CE marking. Continuous-flow air-fed blast helmets are generally tested to EN 14594, and the supplied air must meet EN 12021.
Clean breathing air for up to four operators.
Cool or heat the breathing air.
Dry blasting suits and wet blasting equipment.
Leather, natural rubber or for wet blasting.
Safety shoes or safety boots.
The complete equipment for one operator.
Maintenance, repair and spare parts, directly from Phibo, by our own technicians.
Preventive maintenance in our workshop or at your site. After every service your settings and consumption are reviewed.
More about this service
Blast pots, hoses, guns, rubber flaps and filter cartridges from stock. Non-standard parts we make ourselves.
More about this service
Modernise an existing installation or convert it to a new process. Revised second-hand installations too.
More about this service
Hands-on training at commissioning, standard with SublimotionProcess® and on request with the other installations. When staff change, we repeat it to suit your team.
More about this serviceGive the order reference and the quantity. Not sure which helmet or lens you need? We call you and go through your application. Fill in the form below. Simply reordering? Use the same form or mail sales@phibo.be.
